| 5- Axis CNC Mill | Bridge Mill |
|---|---|
| Okuma Millac 1000VH |
Toyoda LB-325 (CNC) |
| 3.00″ X 51.18″ X 39.37″ (XYZ) Travels |
Bridge Type Vertical Mill |
| (2) 40″ X 40″ Pallets – APC | 100” X 120” X 32” Travels |
| Five Axis Simultaneous Contouring |
26,500 lbs. Max. Table Weight Capacity |
| 50 Taper, 6000 RPM Spindle | |
| High Pressure Coolant System |
| Lathes | Surface Grinders |
|---|---|
| Okuma V100R 44.00″ Dia. Turning capacity |
Okamoto (automatic) – 60″ X 32″ Capability |
| Okuma LB-25 (C.N.C.) 15.5″ Dia. Turning capacity |
Okamoto (automatic) – 32″ X 16″ Capacity |
| Okuma Crown (C.N.C.) 8.5″ Turning capacity |
Chevalier (manual) – 6″ X 18″ Capacity Digital Readouts |
| Clausing/Colchester (Manual) 15.0″ Turning Capability Digital Readouts |
| Rotary Grinders | Coordinate Measuring Machine |
|---|---|
| Toshiba/Shibaura 60″ Diameter Chuck |
Mitutoyo – 32″ X 16″ measuring area |
| CNC Mills | |
|---|---|
| Makino S56 High Speed 35″ X 20″ Travels 20,000 RPM Spindle |
|
| Mori Seiki MV-65 60″ X 26″ Travels 6,600# Table Weight Capacity 32 station tool changer |
|
| Kuraki KV-2000 80″ X 32″ Travels 6,600# Table Weight Capacity |
|
| Okuma MC40 30″ X 16″ Travels |
| Boring Mill | |
|---|---|

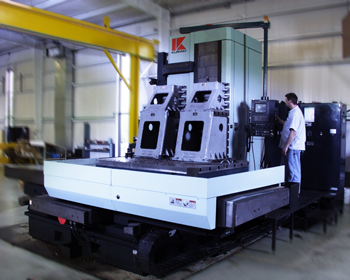

| Kuraki KBT-11WA 78.8″ X 59.0″ Travels 13,000# Table Weight Capacity Table indexes every .01 Degree |
| Saws | Software |
|---|---|
| Dake – Vertical |
SolidWorks – Design |
| Startrite – Vertical | MasterCam – Machining – full 3-D and surfacing |
| DoAll – Horizontal (Programmable) | Shoptech – Job Processing System |
| Inspection |
|---|
| Mitutoyo – BH706 32″ X 16″ Measuring Area |
